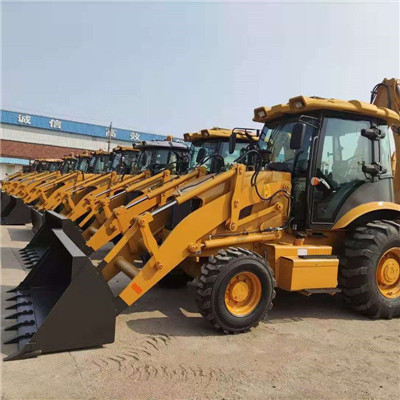

75kw 100hp 2.5ton loading capacity Backhoe loader ET388 for construction building
Main features
1. The use of high-reliability hydraulic torque converter and Gearbox to provide super power, aggravated the smooth and high reliability of the dedicated bridge walking
2. Combine the excavator and the loader into one, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %.
3. Mining, loading function all lead control, light and flexible, high operating efficiency.
4. Humanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable driving.
5. Excavate the lateral sliding mechanism device to make the excavation operation more extensive and more efficient.
6. The design of the front flip cover greatly improves the maintenance of the entire machine.
7. A variety of accessories can be selected to complete a variety of construction operations. For use in municipal administration, construction, water Conservancy, highways, tap water, power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations
Application
Elite backhoe loaders have a wide range of applications suck like earth moving, building, earth digging, coal loading, mining, snow removal, farm and garden works and so on.
Specification
| The Main Performance Parameter of Backhoe Loader ET388 | ||||
| Overall Operating Weight | 8200KG | Final Reducer | Single Stage Final Reducer | |
| Transport Dimension | Rated Loader of Axle | 8/18.5t | ||
| mm L*W*H | 6120×2410×3763 | |||
| cab to ground mm | 2900mm | Transmission System | ||
| Wheel base | 2248mm | Torque Converter | ||
| Min. Ground Clearance | 300mm | Model | YJ280 | |
| Bucket Capacity | 1.0m3 | Type | Single-stage Three Elements | |
| Breakout Force | 38KN | Max. Efficiency | 84.4% | |
| Loading Lifting Capacity | 2500KG | Gearbox | ||
| Bucket Dumping Height | 2742mm | Type | Fixed Shaft Power Transmission | |
| Bucket Dumping Distance | 925mm | Oil Pressure of Clutch | 1373Kpa—1569 Kpa | |
| Digging Depth | 52mm | Gears | Two Gears Ahead, Two Gears Astern | |
| Backhoe Capacity | 0.3 m3 | Max.Speed | 30Km/h | |
| Max. Digging Depth | 4082mm(Lengthening arm4500mm/ Telescopic arm 5797mm) | Tyre | ||
| Swing Angle of Excavator Grab | 190o | Model | 14-17.5/19.5L-24 | |
| Max. Pulling Force | 39KN | Pressure of Front wheel | 0.55Mpa | |
| Engine | Pressure of Back Wheel | 0.223Mpa | ||
| Model | YC4A105Z-T20 | Brake System | ||
| Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber | Emergency Brake | Operation Power Implementing brake | |
| Cylinder-Inside Diameter*Stroke | 4-108*132 | Manual Operation Power Terminating Brake | ||
| Rated Power | 75KW-2200r/min | Service Brake | Air Over Oil Caliper Brake | |
| Rated Speed | 2200r/min | External Type | ||
| Min. Fuel Consumption | ≤230g/km.h | Self-regulation | ||
| Max.Torque | ≥400N.M | Self-balance | ||
| Displacement | 4.837L | Hydraulic System | ||
| Steering System | Digging Power of Excavator Grab | 46.5KN | ||
| Model of Steering Device | BZZ5-250 | Digging Power of Dipper | 44KN | |
| Steering Angle | ±36 o | Bucket Lifting Time | 6．8S | |
| Min. turning radius | 6581mm | Bucket Lowering Time | 3.1S | |
| Pressure of the system | 18Mpa | Bucket Discharge Time | 2.0S | |
| Axle | ||||
| Manufacturer | Feicheng | Main Transmission Type | Double Reduction | |
Details
Luxury and comfortable cab, easy operation
Famous brand engine, more powerful and reliable, Weichai and Cummins engine for option
Famous brand tire, wear-resistant, anti-skid and durable
Professional loading, One 40’HC container can load two units
Can be equipped with various attachments to achieve multi-purpose works, suck like breaker, four in one bucket, six in one bucket, pallet fork, snow blade, auger, grapple and so on
